USB MIPI Capture Card Camera Module Image Quality Detection Solution

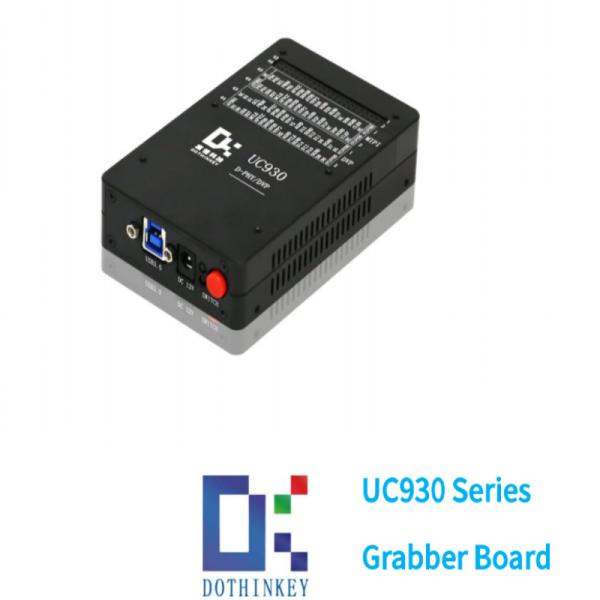

The UC930 is a compact, highly compatible, and reliable mobile camera module test board for automation equipment. It features a simplified interface design that supports both MIPI and DVP modules. With precision-level current detection technology, it achieves a 10nA resolution, enabling accurate and convenient sensor standby current measurement.
Features
*High rate Mlpl lane,and up to 4 lanes supported, bandwidth can be up to 1.6Gbps/lane.
*Parallel date transmission supported, and data up to 16 bits.
*HISPl format module test supported.
*7 programmable power and it also has a high accuracy, low noise; Two power provide the ToF module specially.
*Provide power supply for TOF module and current acquisition.
*Camera module compatibility is wide, supporting most of module in the market.
*Vehicle applications supported, in 24v power supply situation, VPP2 will have 18v output maximum from products.
Funtion
*Support MIPl/DVP/HISPl+ 7 channel power + OS + TOF (DVDD and AFVCC support)+AIN testing+Vehicle applications.
FAQ
Q: What is the lead time?
A: Standard products ship within 5-8 working days.
Q: Do you provide technical support?
A: Yes, we offer professional technical support, including remote guidance and after-sales service.
Q: Are you a factory?
A: Yes, we are a manufacturer specializing in high-quality image sensor testing equipment and camera module testing solutions.
Q: What is the minimum order quantity (MOQ)?
A: Our standard MOQ is 1 pcs.
Q: What is the warranty period?
A: 1-year warranty.
Product Tags:
|
|
USB MIPI Capture Card Camera Module Image Capture Card 1.6Gbps / Lane Images
|
