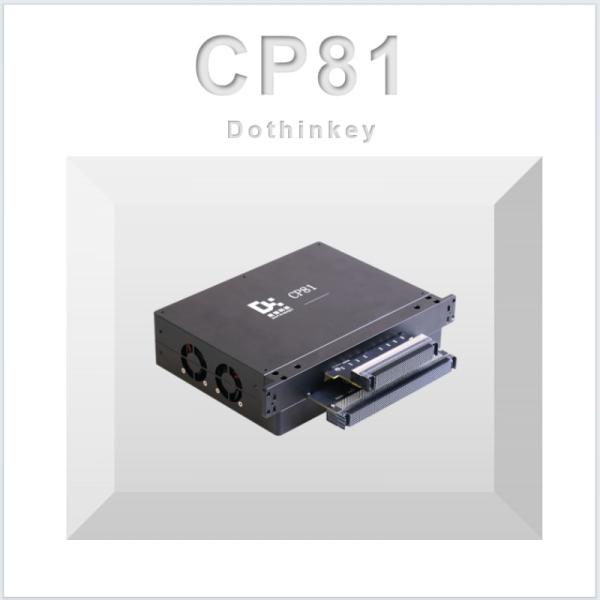

0.8V ~ 5V USB MIPI Capture Card With 8×39 OS And 8×19 LC Testing Support

Brand Name : Dothinkey

Model Number : CP81

Certification : CE

Place of Origin : Shenzhen, China

MOQ : 1

Price : USD1200-USD5000

Supply Ability : Stock Available

Delivery Time : 5-8 Working Days

Packaging Details : Carton Packaging

Sensor Supply Voltage : Measurement Range: 0.8 ~ 5V, Accuracy: ±10mV

Height Width Length : 59mm * 262mm * 230mm

MIPI Maximum Rate : CH1/CH2/CH3/CH4/CH5/CH6/CH7/CH8

DPS Characteristics : AVID, AVID2, DOVID, VPP2 Maximum drive capability 0.5A

LC Characterization : Supports 8×19 LC testing

DPS Output Voltage : 0.5V-5V

Contact Now

CP81 USB MIPI Capture Card with 8×39 OS and 8×19 LC Testing Support

Featutes:

1. Multichannel MIPI D-PHY interface supporting 8 concurrent image data streams
2. Programmable 8×6 power rail system with per-channel voltage adjustment
3. Precision current monitoring spanning mA to nA ranges
4. Optical sensor functional testing through 8×39 test matrix
5. Analog signal acquisition interface for parametric measurements
6. Real-time sensor power rail voltage monitoring
7. Low-power mode voltage characterization capability
8. 4-wire Kelvin sensing for power supply compensation

Schematic:

0.8V ~ 5V USB MIPI Capture Card With 8×39 OS And 8×19 LC Testing Support

Dimention:

0.8V ~ 5V USB MIPI Capture Card With 8×39 OS And 8×19 LC Testing Support

CP81 DPS Current Detection Accuracy:

Channel
Unit
Detection Range
Resolution
Accuracy(25℃)
AVDD
AVDD2
DVDD
DOVDD
mA
0.5mA~maximum
output current
0.1mA
±0.7%+5LSB
uA
10uA~20mA
0.1uA
±0.7%+5LSB
nA
100nA~200uA
10nA
±0.7%+5LSB
