USB Frame Grabber MIPI Capture Card With 8×39 OS And 8×19 LC Testing Support

Brand Name : Dothinkey

Model Number : CP81

Certification : CE

Place of Origin : Shenzhen, China

MOQ : 1

Price : USD1200-USD5000

Supply Ability : Stock Available

Delivery Time : 5-8 Working Days

Packaging Details : Carton Packaging

External Interface ESD Protection : Human Body Model >= ±2000W

Sensor Interface : MIPI D-PHY CSI

MIPI Data Channel : SCR D-PHY

DPS Characteristics : 8X4 0.5-5V Adjustable

PC Communication Interface : 10G Fiber Optic Interface * 4

Sensor Measurement Voltage Range : 0.5~5V

Contact Now

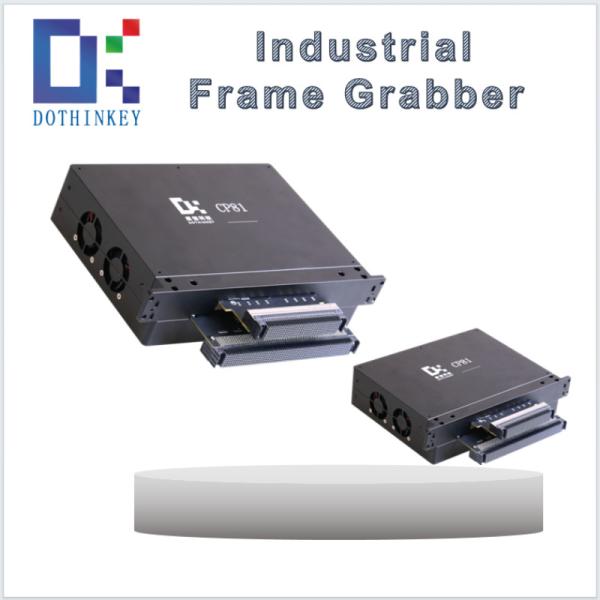

CP81 USB MIPI Capture Card with 8×39 OS and 8×19 LC Testing Support

Featutes:

1. High-speed image capture via 8-lane MIPI D-PHY interface
2. Configurable 48-channel power delivery system (8 groups × 6 channels)
3. Multi-range current measurement (10^-3 to 10^-9 A resolution)
4. 312-point optical sensor test solution (8×39 configuration)
5. Universal analog input for signal measurement
6. Power integrity analysis through rail voltage sensing
7. LP mode voltage monitoring for interface validation
8. Contact resistance compensation via Kelvin measurement

Schematic:

USB Frame Grabber MIPI Capture Card With 8×39 OS And 8×19 LC Testing Support

Dimention:

USB Frame Grabber MIPI Capture Card With 8×39 OS And 8×19 LC Testing Support

CP81 DPS Maximum Load Capacity:

Channel
DPS Output
Voltage
Maximum
Output
Current
Note
AVDD
0.5V-5V
0.5A
The sum of the current values in a single module channel, excluding VAUX, must not exceed 1A. Notes:
1. A single module channel has 6 channels of DPS power
supply for user configuration.
2. Eight module channels have a total of 8X6 DPS power
supply for user configuration.
3. Please do not exceed the technical specifications provided
in this table when DPS is in use, otherwise it will damage
the product or affect the testing accuracy.
AVDD2
 0.5V-5V
0.5A
DVDD
0.5V-3.3V
0.8A
DOVDD
0.5V-5V
0.5A
VPP2
0.5V-5V
0.5A
VAUX
1.3V-8V
0.1A
