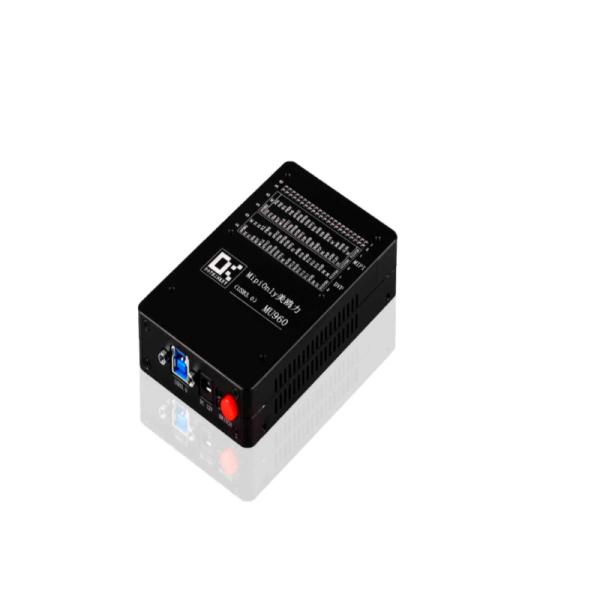

Dothinkey MIPI Frame Grabber Capture Card Camera Module Testing Solution

Dothinkey MIPI Frame Grabber Capture Card Camera Module Testing Solution

The UC930 product is equipped with seven independent, high-precision, low-noise digital DC sensor power supplies.

*The DOVDD provides a single-channel power output of up to 3.3V/500mA.

*The DVDD delivers a single-channel power output of up to 2V/800mA.

*AVDD, AFVCC, and AVDD2 each offer a single-channel power output of no more than 4V/500mA.

*OISVDD supports a single-channel power output of up to 4V/600mA.

Features

*High rate MlPl lane,and up to 4 lanes supported, bandwidth can be up to 1.6Gbps/lane.

*7 programmable power and it also has a high accuracy, low noise,two power provide the TOF module specially.
*Provide power supply for TOF module and current acquisition.

Funtion

*Support MIPl/DVP/HISPl+ 7 channel power + OS + TOF (DVDD and AFVCC support)+AIN testing+Vehicle applications.

FAQ

Q: What is the lead time?

A: Standard products ship within 5-8 working days.

Q: Do you provide technical support?

A: Yes, we offer professional technical support, including remote guidance and after-sales service.

Q: Is secondary development supported? Are examples provided?
A: Yes, it is supported, and example files are provided.

Dothinkey MIPI Frame Grabber

Camera Module MIPI Frame Grabber

MIPI Camera Module Testing Solution

Dothinkey MIPI Frame Grabber Capture Card Camera Module Testing Solution Images
