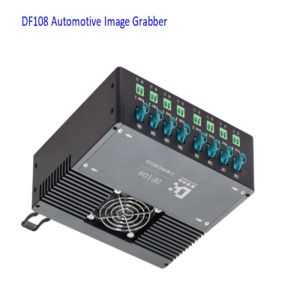

DF108 MIPI Frame Grabber Automotive Aging Test Image Test Box

MIPI frame grabber DF108 Automotive Aging Test Image Test Box

Diagram: MAXIM/TI serializer and DF108

Functions:

1) Flexible selection of 1-8 channels.

2) 0.8V-18V power supply settings.

3) Current monitoring, frame rate/error frame display, Link error statistics, Decoding Error statistics.

4) Support full image capture and saving for each channel, POC power supply.

5) The deserializer can be selected on demand (for MAXIM serializer/TI serializer and other vehicle modules, it can be compatible with most serialization modules on the market at present).

6) Supports 40G fiber optic communication (using a one-to-four fiber optic cable, compatible with 10G cards, with bandwidth determined by the number of connected 10G ports).

7) Supports external POC power input (all 8 channels support external input, but only one can be used at a time).

DF108 MIPI Frame Grabber

MIPI Image Test Box

DF108 MIPI Frame Grabber Automotive Aging Test Image Test Box Images
